What is spunlace nonwoven fabric?

Spunlace (hydroentangled) nonwoven is made by carding staple fibers into a web and bonding them with high-pressure water jets instead of chemical binders or heat. The result is a soft, drapeable, low-lint fabric with good tensile strength, widely used in medical, wipes, beauty and synthetic leather applications.

Which fibers can YDL Nonwovens process?

YDL purchases and processes polyester (PET), viscose/rayon, polypropylene (PP), polylactide (PLA) and other fibers, as well as specialty fibers such as glass fiber, basalt, polyimide and pre-oxidized filament for technical and high-temperature applications.

Can color, hand feel, pattern and function be customized?

Yes. YDL runs base fabric production plus dyeing, sizing, printing and functional finishing in-house, so color, hand feel, printed pattern and functional effects such as water repellency, flame retardancy, cooling or thermochromic finishing can be matched to the buyer's specification.

Is YDL Nonwovens ISO 9001 certified?

Yes. YDL operates an ISO 9001 quality management system with documented quality control procedures from fiber intake to finished roll inspection.

Where is YDL Nonwovens located and which markets does it serve?

YDL is located in Changshu, Jiangsu Province, China, and has served global buyers since 2007 in medical and hygiene, beauty and skincare, faux leather, home textile, cleaning and filtration markets.

How can I get technical data sheets or samples?

Request the product catalog online or contact the sales team at elane@ydlnonwovens.com with your target application, fiber, weight and finishing requirements to receive matching technical data and sample options.

China Engine Cover Foam Nonwoven Product & Products

Primary Portfolio Catalog

Automotive & Technical Engineered Nonwovens

Explore high-performance functional substrates, acoustic insulation webs, and composite base layers manufactured to strict ISO 9001 and automotive NVH specifications.

High-Quality Ultrasonic Drilling Nonwoven Fabric

Ultrasonic Drilling Nonwoven Fabric Substrates

View Specification

Magnetic Spunlace Nonwoven Technical Fabric

View Specification

High-Durability PTFE Nonwoven Membrane

View Specification

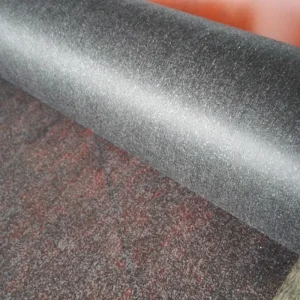

Powder-Dusted Acoustic Spunlace Nonwoven

View Specification

Lightweight Polypropylene Spunlace Nonwoven

View Specification

High-Tensile Full-Cross Spunlace Nonwoven

View Specification

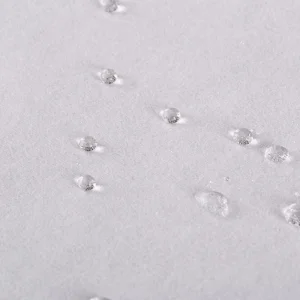

Oleophobic & Super Water Repellent Nonwoven

View Specification

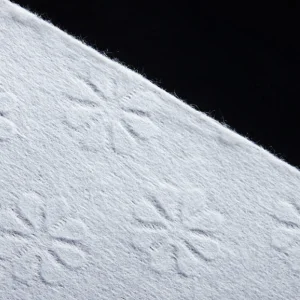

Custom Structural Embossed Nonwoven Web

View Specification

Technical Whitepaper Insight

Engineering Engine Cover Foam Nonwoven Solutions

Comprehensive thermal, acoustic, and mechanical optimization for contemporary automotive powertrain enclosures.

2007 Pioneering Spunlace Manufacturing

ISO 9001 Standardized Process Quality System

Up to 260°C Continuous Heat Resistance Range

< 100 mm/min FMVSS 302 Flame Retardancy Compliance

Structural Hierarchy of Automotive Engine Cover Foam Nonwovens

In modern vehicle dynamics, the engine beauty cover does far more than provide visual tidiness. It serves as an active acoustic damping shield and radiant heat barrier. Engine cover foam nonwoven products are engineered multi-layer laminates comprising high-loft, sound-deadening open-cell polyurethane (PU) or melamine foams combined directly with specialized needlepunch or hydroentangled spunlace nonwoven face fabrics. This multi-material architecture attenuates both high-frequency valvetrain chatter and low-frequency combustion rumble while repelling automotive fluids such as motor oil, glycol coolant, and road brine spray.

Acoustic Flow Resistivity

Engineered air flow resistivity (Rs) optimized through precision fiber denier selection and aperturing, converting kinetic sound wave energy into thermal dissipation across the critical 800 Hz to 5000 Hz human annoyance spectrum.

Thermal Stability Underhood

Constructed using heat-stabilized Polyethylene Terephthalate (PET), Polyimide (PI), and pre-oxygenated fibers capable of withstanding prolonged continuous operating temperatures up to 150°C and transient turbocharger spikes up to 220°C without shrinkage or thermal degradation.

Oleophobic & Hydrophobic Barrier

Advanced fluorochemical immersion and surface functional finishing provide extreme water contact angles (>130°) and oil repellency ratings exceeding AATCC 118 Grade 6, preventing hydrocarbon soaking and volatile odor release.

Supply Chain Superiority

China Factory Advantages in Technical Nonwovens

Why Tier-1 automotive molders and component converters leverage Changshu Yongdeli's integrated manufacturing ecosystem.

Single-Roof Vertical Integration

Eliminate inter-factory logistics and supply chains. From raw fiber carding and hydroentanglement to dyeing, sizing, functional chemical impregnations, and slitting, every operation runs within our unified Jiangsu manufacturing center.

Precision Formulation Tuning

Our lab directly formulates binder-free mechanical fiber bonding, custom web thickness (0.3mm to 3.5mm), basis weights (30 gsm to 450 gsm), and dual-sided release coatings to accommodate high-pressure thermoforming cycles.

Global Logistics & Cost Economy

Proximity to Shanghai deep-water container ports provides global automotive hubs in North America, Germany, Japan, and Southeast Asia with expedited FOB/CIF shipping, high container packing density, and resilient raw polymer sourcing.

Rigorous Automotive QA Standards

Fully compliant with ISO 9001 certified protocols. Every master roll undergoes continuous automated optical surface inspection, tensile strain profiling (MD/CD balance), and thermal chamber shrinkage testing before dispatch.

Market Dynamics

Emerging Trends in Underhood NVH & Enclosure Materials

The transformation from internal combustion engines to hybrid and electric platforms imposes demanding acoustic and thermal requirements on nonwoven products.

High-Frequency EV E-Motor Masking

As electric drive units eliminate broadband combustion roar, high-pitch inverter whine (10 kHz to 16 kHz) becomes perceptible. Next-gen engine and e-motor cover nonwovens utilize ultra-fine micro-denier fibers to absorb high-frequency harmonics effectively.

Decarbonization & Post-Consumer Resins

Global OEMs mandate increasing recycled content (rPET) up to 70% in non-structural acoustic parts. Our advanced hydroentanglement technology processes recycled post-consumer PET bottles without sacrificing tensile integrity or thermal shrinkage limits.

Monomaterial Recyclability

Eliminating multi-polymer separation difficulties by co-developing 100% polyester engine cover nonwoven foam laminates. Using melt-bondable low-melt PET bi-component fibers replaces thermoset adhesives, enabling single-stream automotive recycling.

Application Engineering

Automotive Application Scenarios & Macro Solutions

Targeted NVH, thermal preservation, and chemical barrier deployments across the vehicle envelope.

Underhood Engine Covers

Direct thermal-vacuum molded cover liners with integral flame resistance (UL94 V-0/HF-1), preventing hood exterior paint blistering while trapping oil vapor.

Dash Insulators & Firewalls

Heavy-mass barrier substrates backed by hydroentangled nonwoven skins that block direct engine bay acoustic transmission into the passenger cockpit.

Underbody Aero Shields

High-stiffness, water-repellent needlepunch and spunlace nonwovens with oleophobic coatings that withstand gravel impacts and winter road chemicals.

EV Battery Enclosures

High-dielectric insulation spunlace layers engineered with flame-retardant polyimide or oxidized PAN fibers that retard runaway battery cell propagation.

Procurement Directives

Global B2B Sourcing Criteria & Audit Checklist

Key parameters international procurement managers verify before approving automotive nonwoven tooling.

1. VOC & Fogging Limits

Strict DIN 75201 and VDA 278 conformity guaranteeing low condensable volatile organic compound (VOC) emissions within closed automotive cabin air intakes.

2. Flammability Ratings

Certified verification under FMVSS 302, GB 8410, and ISO 3795 ensuring burn rates remain safely below 100 mm/min or self-extinguish immediately upon ignition separation.

3. Hydrolysis Resistance

Resistance to hot, humid environmental cycles (85°C at 85% RH for 1,000 hours) without delamination from core PU foam cores or tensile strength decay.

4. Isotropy & Draw Ratio

Strict Machine Direction (MD) to Cross Direction (CD) tensile ratios near 1:1, preventing necking, tears, or localized thin spots during high-draw thermoforming.

5. Full Lot Traceability

End-to-end electronic barcoding tying fiber bale raw certificates directly to finished roll slitting records, ensuring immediate traceability for Tier-1 line safety audits.

Technical Inquiries

Frequently Asked Questions (FAQ)

Essential guidance for design engineers, automotive program managers, and commercial sourcing teams.

What role does nonwoven fabric play when laminated to engine cover foam?

The nonwoven fabric functions as a multi-role engineered skin. Mechanically, it provides tensile reinforcement and protects open-cell acoustic foam against gravel impacts and abrasion. Acoustically, its calibrated air flow resistance tunes sound absorption. Chemically, it acts as an impervious barrier repelling engine oils, coolants, and water sprays.

How does YDL ensure compliance with automotive flammability and odor standards?

We use inherent flame-retardant polymers (such as pre-oxygenated fibers or FR-treated PET) and binder-free hydroentanglement. This avoids low-molecular-weight chemical crosslinkers that outgas, ensuring compliance with FMVSS 302 burn-rate ceilings and strict VDA 270/278 odor and fogging specifications.

Can you supply nonwoven fabrics pre-treated for flame lamination?

Yes. Our sizing and finishing lines can apply surface-energy tuning agents and low-melt adhesive web co-layers. These allow continuous hot-roll, flame, or ultrasonic bonding directly to polyurethane or acoustic melamine foams without delamination during deep thermal draws.

What fibers are recommended for high-heat automotive applications?

For moderate temperatures up to 130°C, heat-set polyester (PET) is the global benchmark. For demanding underhood zones, turbocharger vicinity, or battery thermal barriers, we produce high-performance spunlace nonwovens utilizing basalt, glass fiber, polyimide (PI), and pre-oxidized carbon precursor filaments capable of enduring 260°C to 500°C.
